Kiskereskedelmi ár

N/A

Teljesítmény

8.2kW at 9000r/min

Max. Nyomaték

9.7N·m/6500 r/min

Száraz tömeg (kg)

131

Technikai adatok

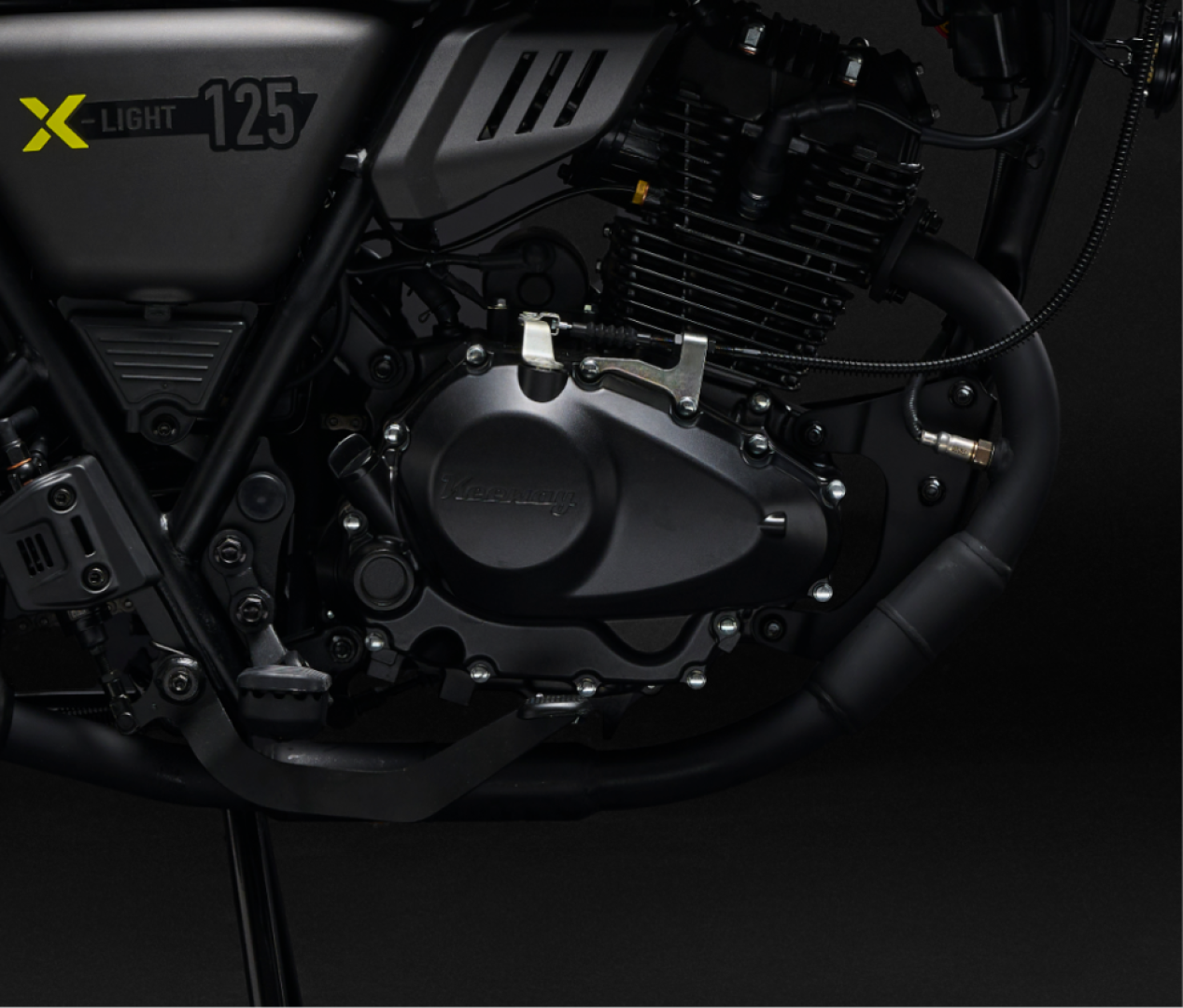

  • Bore x Stroke (mm)

    ø57.3x48.4

    Displacement (cc)

    125

    Type

    1-cylinder/4-stroke/2-valve

    Power

    8.2kW at 9000r/min

    Max. torque

    9.7N·m/6500 r/min

    Compression ratio

    9.3:1

    Fuel system

    EFI

    Valve train

    SOHC

    Ignition

    TCI

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Air-cooled

  • Gearbox

    5-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Front wheel

    Spokes

    Front suspension

    Telescopic forks

    Front suspension travel (mm)

    115

    Front tyre

    100/90-18

    Rear wheel

    Spokes

    Rear suspension

    Dual shock-absorber

    Rear suspension travel (mm)

    56.6

    Rear tyre

    120/80-17

    Front brakes

    Disc

    Front brakes diameter (mm)

    276

    Rear brakes

    Disc

    Rear brakes diameter (mm)

    220

  • Dry weight (kg)

    131

    Seat height (mm)

    766

    Overall length (mm)

    2035

    Overall width (mm)

    850

    Overall height (mm)

    1120

    Ground clearance (mm)

    133

    Wheelbase (mm)

    1335

    Fuel capacity (L)

    16

    Top speed (km/h)

    99

    Max. load (kg)

    160

    Battery

    12V9Ah
