Cena od

N/A

Moc

13.5kW at 8500 r/min

Maks. moment obrotowy

16.0N·m/7500 r/min

Waga sucha

166

Specyfikacja techniczna

  • Bore x Stroke (mm)

    ø49x66

    Displacement (cc)

    248.9

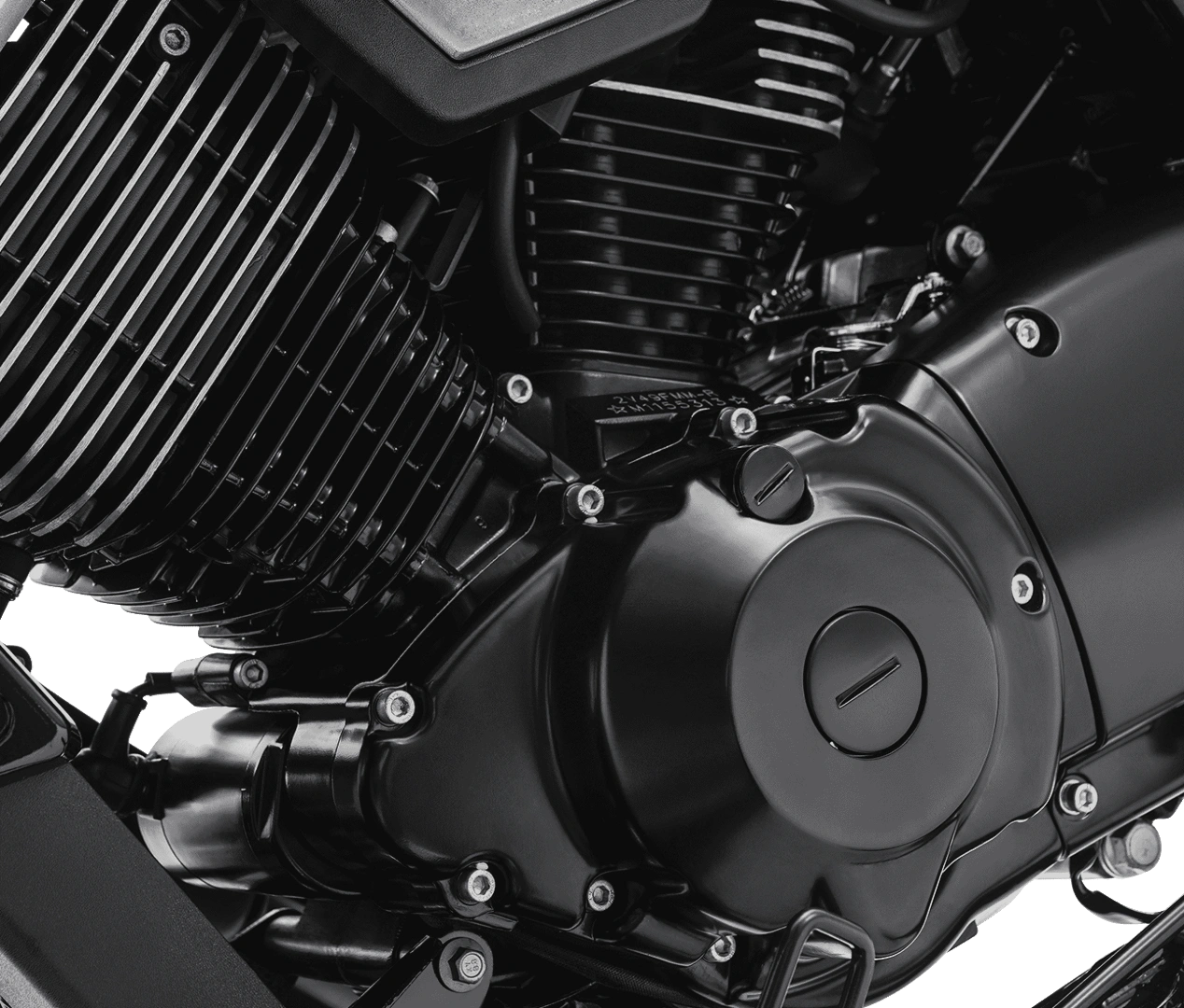

    Type

    2-cylinder/4-stroke/4-valve

    Power

    13.5kW at 8500 r/min

    Max. torque

    16.0N·m/7500 r/min

    Compression ratio

    10:1

    Fuel system

    EFI

    Valve train

    SOHC

    Ignition

    TCI

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Air-cooled

  • Gearbox

    5-speed

    Final drive

    V-Belt

    Clutch type

    Wet multi-plate

  • Front wheel

    Alloy

    Front suspension

    Upside-down telescopic forks

    Front suspension travel (mm)

    110

    Front tyre

    120/80-16

    Rear wheel

    Alloy

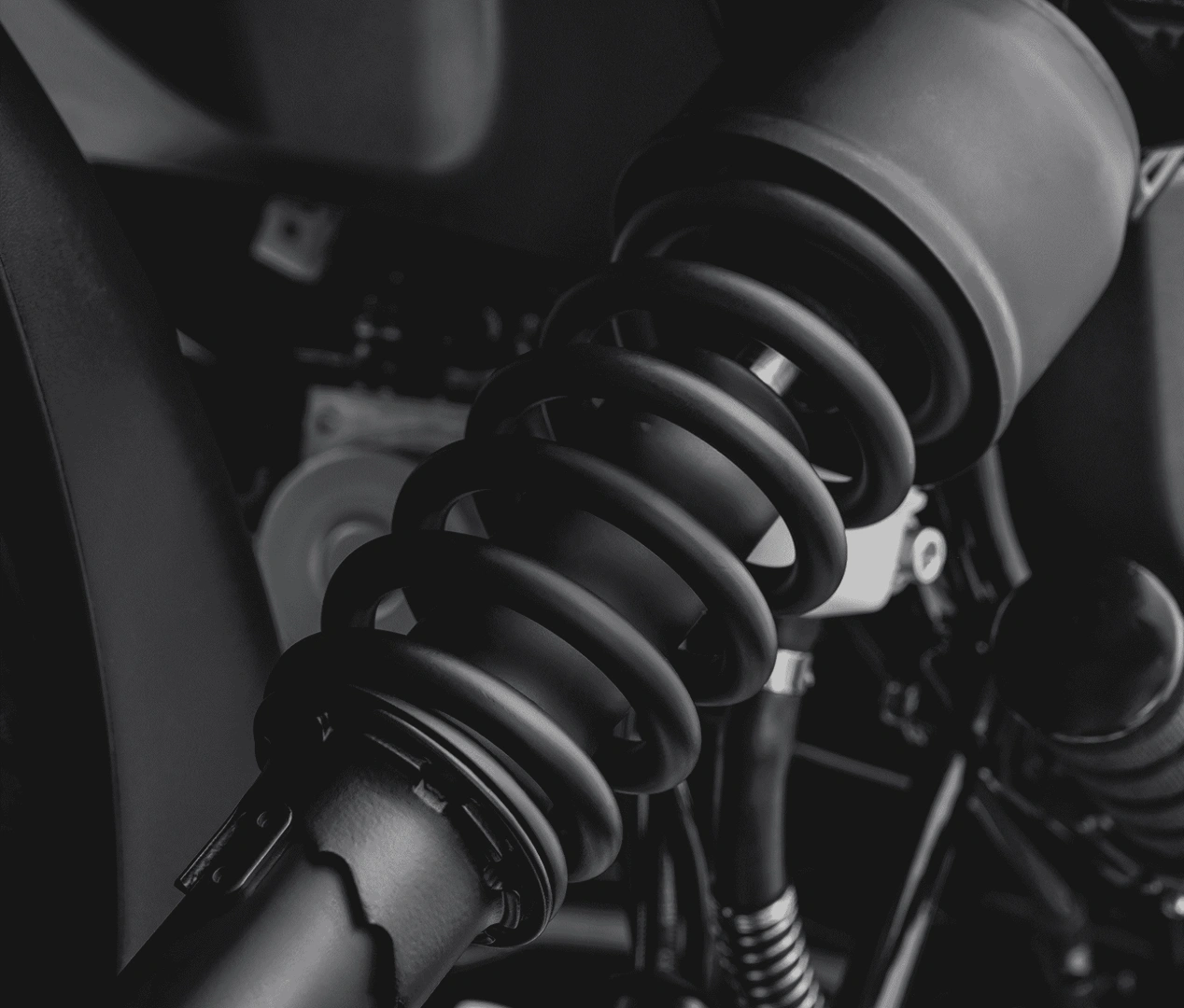

    Rear suspension

    Dual shock-absorber

    Rear suspension travel (mm)

    50

    Rear tyre

    140/70-16

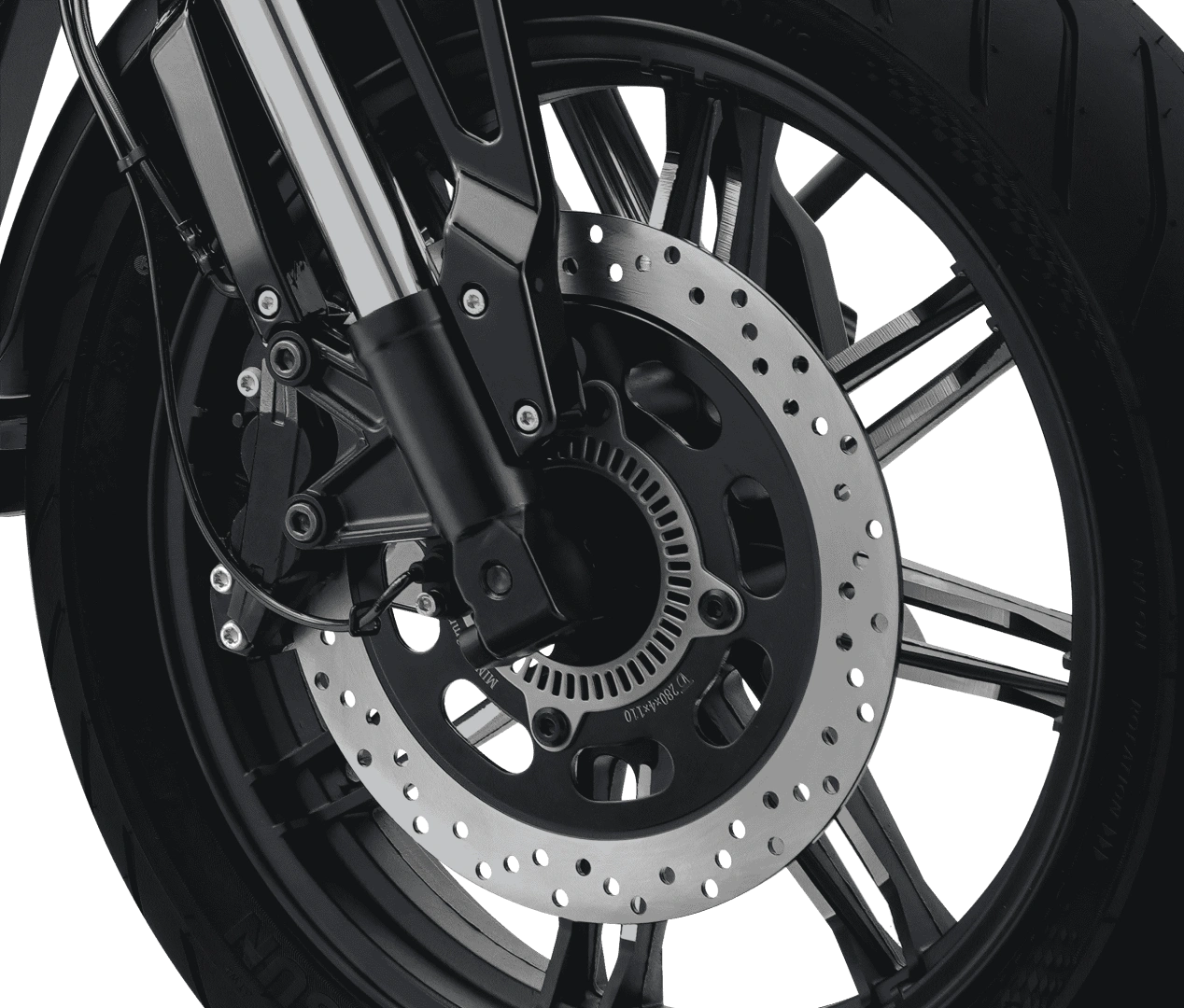

    Front brakes

    Disc

    Front brakes diameter (mm)

    280

    Rear brakes

    Disc

    Rear brakes diameter (mm)

    240

  • Dry weight (kg)

    166

    Seat height (mm)

    715

    Overall length (mm)

    2230

    Overall width (mm)

    920

    Overall height (mm)

    1090

    Ground clearance (mm)

    160

    Wheelbase (mm)

    1530

    Fuel capacity (L)

    20

    Top speed (km/h)

    110

    Max. load (kg)

    150

    Battery

    12V8Ah
